Product Details
＋

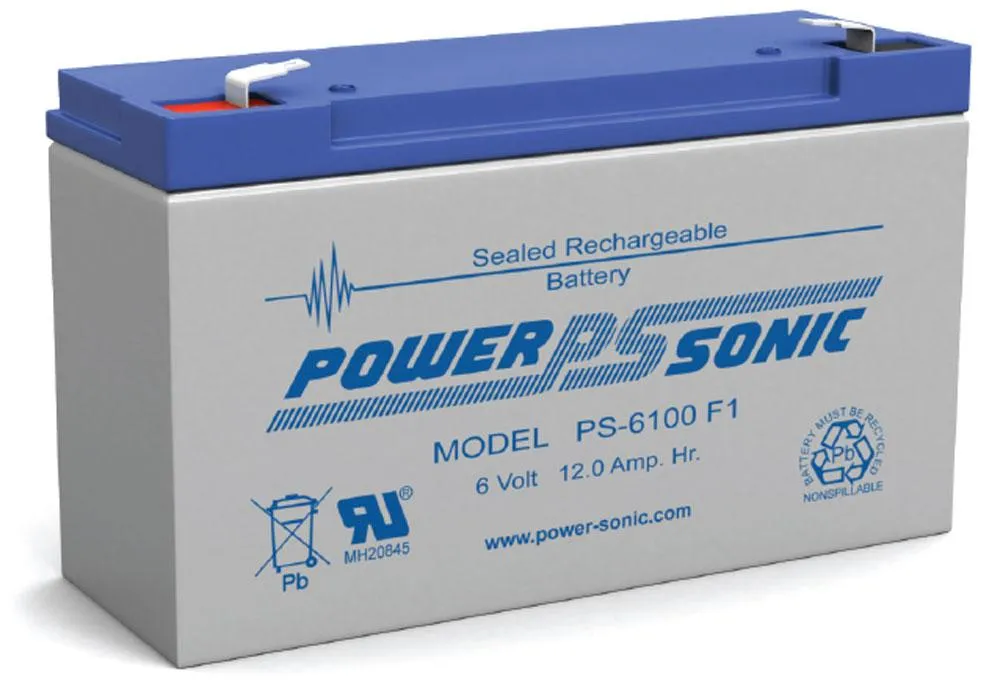

Powersonic Sealed Lead Acid Battery (6.0 Volts, 12.0ah)Absorbent Glass Mat (AGM) technology for superior performance Valve regulated, spill proof construction allows safe operation in any position Power/volume ratio yielding unrivaled energy density Rugged impact resistant ABS case and cover (UL94-HB) Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified U.L. recognized under file number MH 20845
Nominal Voltage: 6 volts (3 cells) Nominal Capacity:
20-hr.(600mA to 5.25 volts) ..... 12.00 AH
10-hr.(1.15A to 5.25 volts) ..... 11.50 AH
5-hr. (2.1A to 5.10 volts) ..... 10.50 AH
1-hr. (7.3A to 4.50 volts) ..... 7.30 AH
15-min. (22.3A to 4.50 volts) ..... 5.58 AH
Approximate Weight: 4.30 lbs. (1.95 kg) Energy Density (20-hr. rate): 1.64 W-h/in3 (99.79 W-h/l) Specific Energy (20-hr. rate): 16.74 W-h/lb (36.91 W-h/kg) Internal Resistance (approx.): 10 milliohms Max Discharge Current (7 Min.): 36.0 amperes Max Short-Duration Discharge Current (10 Sec.): 120.0 amperes Shelf Life (% of nominal capacity at 68°F (20°C)
1 Month ..... 97%
3 Months ..... 91%
6 Months ..... 83%
Operating Temperature Range:
Charge ......... -4°F (-20°C) to 122°F (50°C)
Discharge ..... -40°F (-40°C) to 140°F (60°C)
Case:....................... ABS Plastic Power-Sonic Chargers: ...... PSC-61000A, 61000A-C
Length: 5.95" (151) Width: 2.00" (51) Height: 3.70" (94) Height (Over Terminals): 3.86" (98)
Quick disconnect tabs, 0.250" x 0.032"- Mate with AMP. INCFASTON "250" series.
Key Features:
Performance Specifications:
20-hr.(600mA to 5.25 volts) ..... 12.00 AH
10-hr.(1.15A to 5.25 volts) ..... 11.50 AH
5-hr. (2.1A to 5.10 volts) ..... 10.50 AH
1-hr. (7.3A to 4.50 volts) ..... 7.30 AH
15-min. (22.3A to 4.50 volts) ..... 5.58 AH
1 Month ..... 97%
3 Months ..... 91%
6 Months ..... 83%
Charge ......... -4°F (-20°C) to 122°F (50°C)
Discharge ..... -40°F (-40°C) to 140°F (60°C)
Dimensions:
Terminal/Connection Type:
