NFC FPC Antena Adhesive Tape Mount, 13.56 MHz frequency, 71.5 MHz SRD, 20 mm reading distance, 30 mm length x 15 mm width.

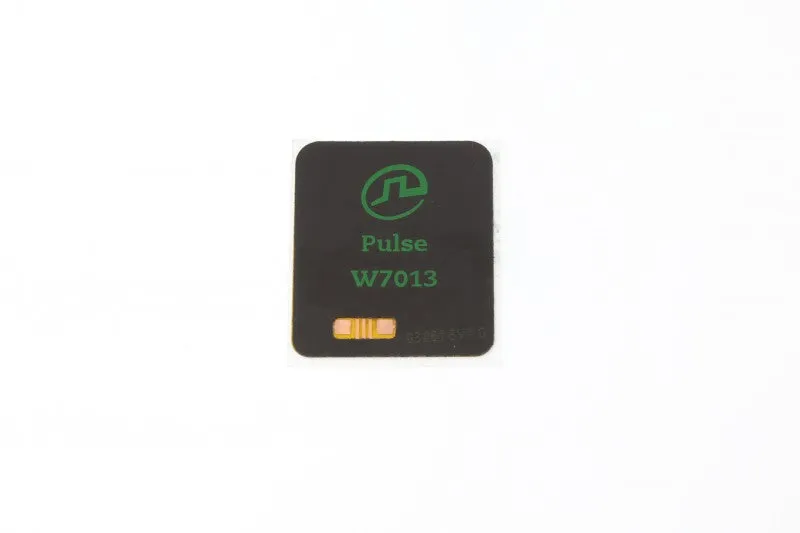

The W7013 is a flexible Near Field Communication (NFC) antenna ideal for tight-space embedded products such as tablets, laptops, printers and other unique system using NFC technology. It is intended for pairing and sharing modes typically found in non-payment NFC applications.

The W7013 has a semi-flexible sintered ferrite backing designed to optimize magnetic fields, thus increasing the corresponding field strength of the antenna. The W7013 is a thin, flexible antenna which can be fed with customersupplied interconnect cables by using direct-solder methods or with the use of Pulse’s own interface connections. Mounting the antenna is easily accomplished using the thin but aggressive holding adhesive backing. Recommended for mounting on the inside of battery covers, directly onto PCB or metal surfaces, or locations where the antenna will be on or in close proximity to ground planes or displays.

Features

• External performances on metal surfaces

• Thin, semi-flexible structure
• Easily assembles to device covers or mechanics
• Well-known antenna concept, reliable technology
• RoHS compliant product

Applications:

• Mobile devices
• Reader / Writer devices
• Sharing / Pairing
