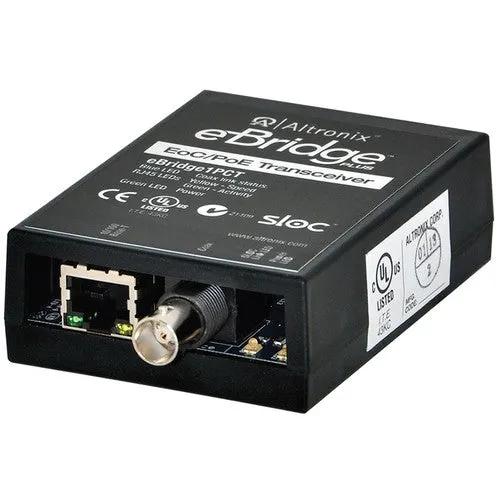

The eBridge1PCT - IP over Coax transceiver is designed for use with eBridge1PCR, eBridge1PCRX, eBridge4PCRX and eBridge16PCRX receivers to enable fast 10/100Base-T Ethernet digital communication over coax cable. The eBridge1PCT will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission is extended to 2,000' (over five times the 100m/328' Ethernet maximum length), eliminating the need for repeaters.
| Basic |
| Brand Name: |
Altronix |
| DVI: |
No |
| Ethernet Technology: |
Fast Ethernet |
| Maximum Distance Supported: |
2001.31 ft |
| Media Type Supported: |
Twisted Pair |
| Network (RJ-45): |
Yes |
| Network Technology: |
10/100Base-TX |
| Number of Network (RJ-45) Ports: |
1 |
| Product Type: |
Transceiver/Media Converter |
| Total Number of Ports: |
2 |
| USB: |
No |
| General Information |
| Brand Name: |
Altronix |
| Manufacturer: |
Altronix Corporation |
| Manufacturer Part Number: |
EBRIDGE1PCTX |
| Manufacturer Website Address: |
|
| Packaged Quantity: |
1 |
| Product Line: |
eBridge |
| Product Model: |
eBridge1PCTX |
| Product Name: |
eBridge1PCTX - IP over Coax Transceiver |
| Product Type: |
Transceiver/Media Converter |
| Interfaces/Ports |
| DVI: |
No |
| Management Port: |
No |
| Network (RJ-45): |
Yes |
| Number of Network (RJ-45) Ports: |
1 |
| Total Number of Ports: |
2 |
| USB: |
No |
| Media & Performance |
| Maximum Distance Supported: |
2001.31 ft |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
| Environmental Certification: |
RoHS |
| Environmentally Friendly: |
Yes |
| Network & Communication |
| Ethernet Technology: |
Fast Ethernet |
| Network Technology: |
10/100Base-TX |
| Physical Characteristics |
| Depth: |
4.4" |
| Height: |
1" |
| Weight (Approximate): |
3.36 oz |
| Width: |
2.5" |
| Warranty |
| Limited Warranty: |
Lifetime |
