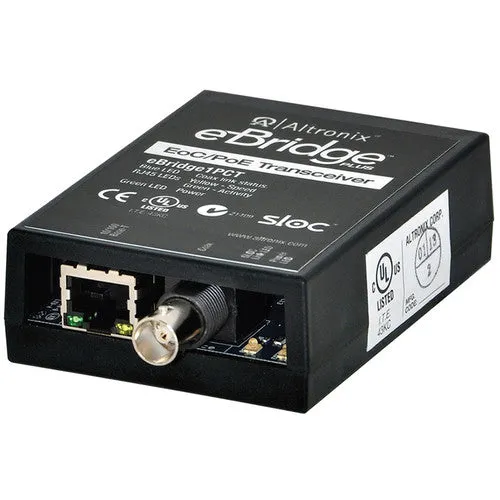

ALTRONIX EBRIDGE1PCTX IP over Coaxial EoC Transceiver
$
58.60
$
45.08
Taxes and shipping calculated at checkout
Title
Please select combo product attributes
The combo subtotal is $,SAVE
$
Unavailable
Quantity
-
+
ADD TO CART
BUY IT NOW
The eBridge1PCT - IP over Coax transceiver is designed for use with eBridge1PCR, eBridge1PCRX, eBridge4PCRX and eBridge16PCRX receivers to enable fast 10/100Base-T Ethernet digital communication over coax cable. The eBridge1PCT will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission is extended to 2,000' (over five times the 100m/328' Ethernet maximum length), eliminating the need for repeaters.
| Basic | |
|---|---|
| Brand Name: | Altronix |
| DVI: | No |
| Ethernet Technology: | Fast Ethernet |
| Maximum Distance Supported: | 2001.31 ft |
| Media Type Supported: | Twisted Pair |
| Network (RJ-45): | Yes |
| Network Technology: | 10/100Base-TX |
| Number of Network (RJ-45) Ports: | 1 |
| Product Type: | Transceiver/Media Converter |
| Total Number of Ports: | 2 |
| USB: | No |
| General Information | |
|---|---|
| Brand Name: | Altronix |
| Manufacturer: | Altronix Corporation |
| Manufacturer Part Number: | EBRIDGE1PCTX |
| Manufacturer Website Address: | |
| Packaged Quantity: | 1 |
| Product Line: | eBridge |
| Product Model: | eBridge1PCTX |
| Product Name: | eBridge1PCTX - IP over Coax Transceiver |
| Product Type: | Transceiver/Media Converter |
| Interfaces/Ports | |
|---|---|
| DVI: | No |
| Management Port: | No |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
| Total Number of Ports: | 2 |
| USB: | No |
| Media & Performance | |
|---|---|
| Maximum Distance Supported: | 2001.31 ft |
| Media Type Supported: | Twisted Pair |
| Miscellaneous | |
|---|---|
| Environmental Certification: | RoHS |
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Ethernet Technology: | Fast Ethernet |
| Network Technology: | 10/100Base-TX |
| Physical Characteristics | |
|---|---|
| Depth: | 4.4" |
| Height: | 1" |
| Weight (Approximate): | 3.36 oz |
| Width: | 2.5" |
| Warranty | |
|---|---|
| Limited Warranty: | Lifetime |
