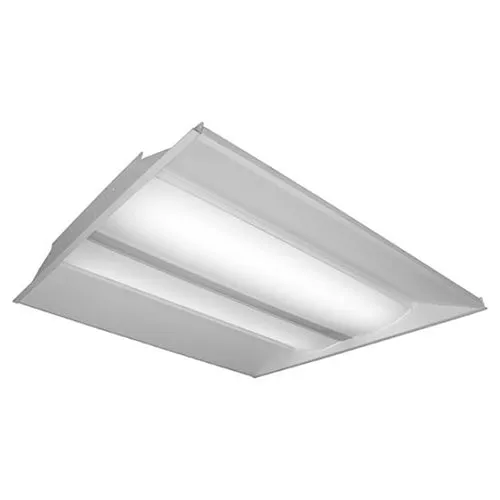

Advantage Environmental Lighting LELL LED 2 X 2 and 2 X 4 Recessed Troffer
The LELL Series is a 2x2 or 2x4 LED troffer fixture designed for recessed mounting applications. The LELL offers the look and feel of a fluorescent luminaire with a contemporary look that blends with today's commercial spaces. The LELL utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry.
APPLICATIONS
The LELL Series of LED Strips were designed to be high quality, energy efficient LED fixtures for use in commercial applications, hospitals, offices, government facilities, schools, and public areas. The LELL Series is designed to be suitable for use in standard 15/16" inverted T-Bar grid ceilings.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Linear ribbed acrylic lens. White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C. Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. 0-10 Dimming Standard.
MOUNTING
This fixture is designed to be recessed mounted.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
WARRANTY
5-Year Limited Warranty.
| LELL240SLM: 2x2 LED Recessed Troffer 33W 4650L 4000K | LELL240MLM: 2x2 LED Recessed Troffer 57W 7974L 4000K | LELL240HLM: 2x2 LED Recessed Troffer 80W 11150L 4000K | LELL440SLM: 2x4 LED Recessed Troffer 33W 4650L 4000K | LELL440MLM: 2x4 LED Recessed Troffer 57W 7974L 4000K | LELL440HLM: 2x4 LED Recessed Troffer 80W 11150L 4000K |
| LELL440SMM: 2x4 LED Recessed Troffer 86W 12040L 4000K | LELL440MMM: 2x4 LED Recessed Troffer 93W 13016L 4000K | LELL440HMM: 2x4 LED Recessed Troffer 112W 15728L 4000K | LELL440SHM: 2x4 LED Recessed Troffer 118W 16500L 4000K | LELL440MHM: 2x4 LED Recessed Troffer 143W 20000L 4000K | LELL440HHM: 2x4 LED Recessed Troffer 179W 25000L 4000K |
