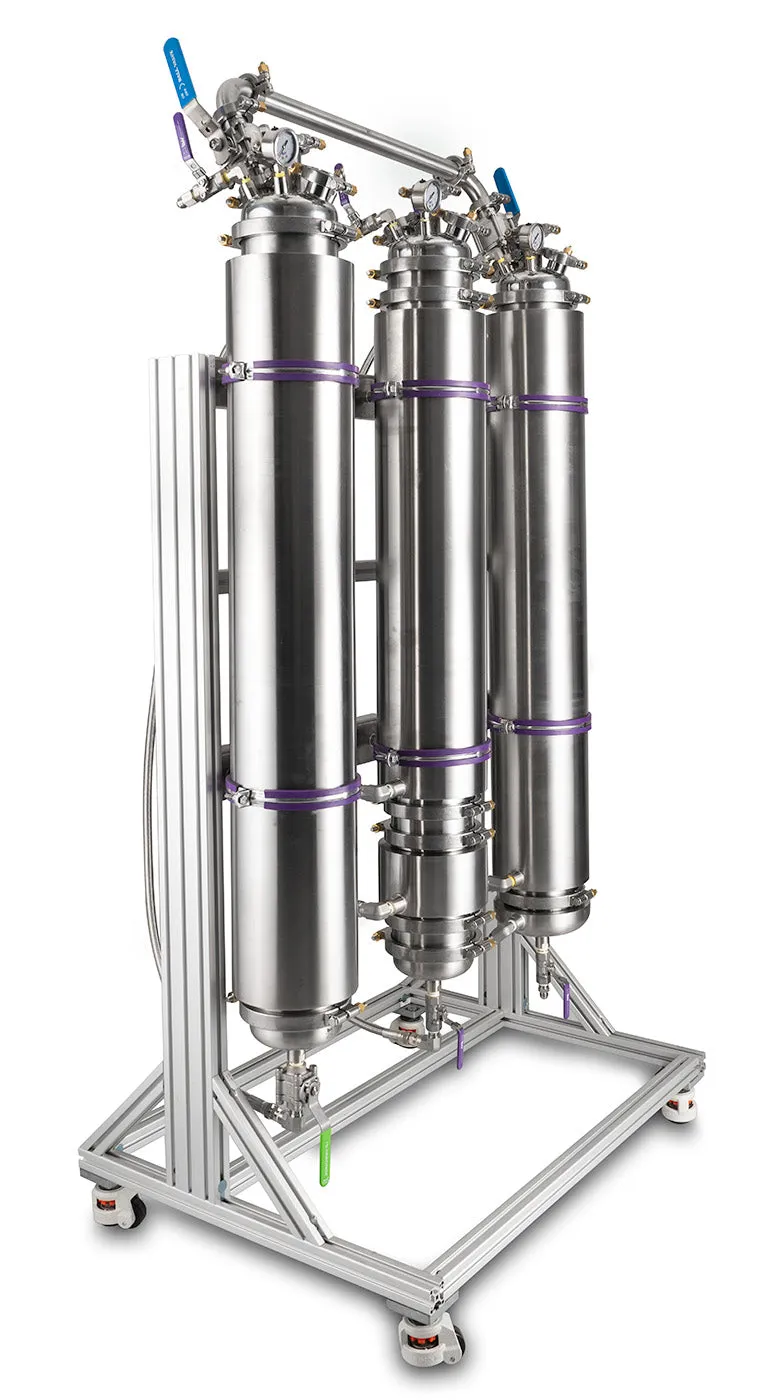

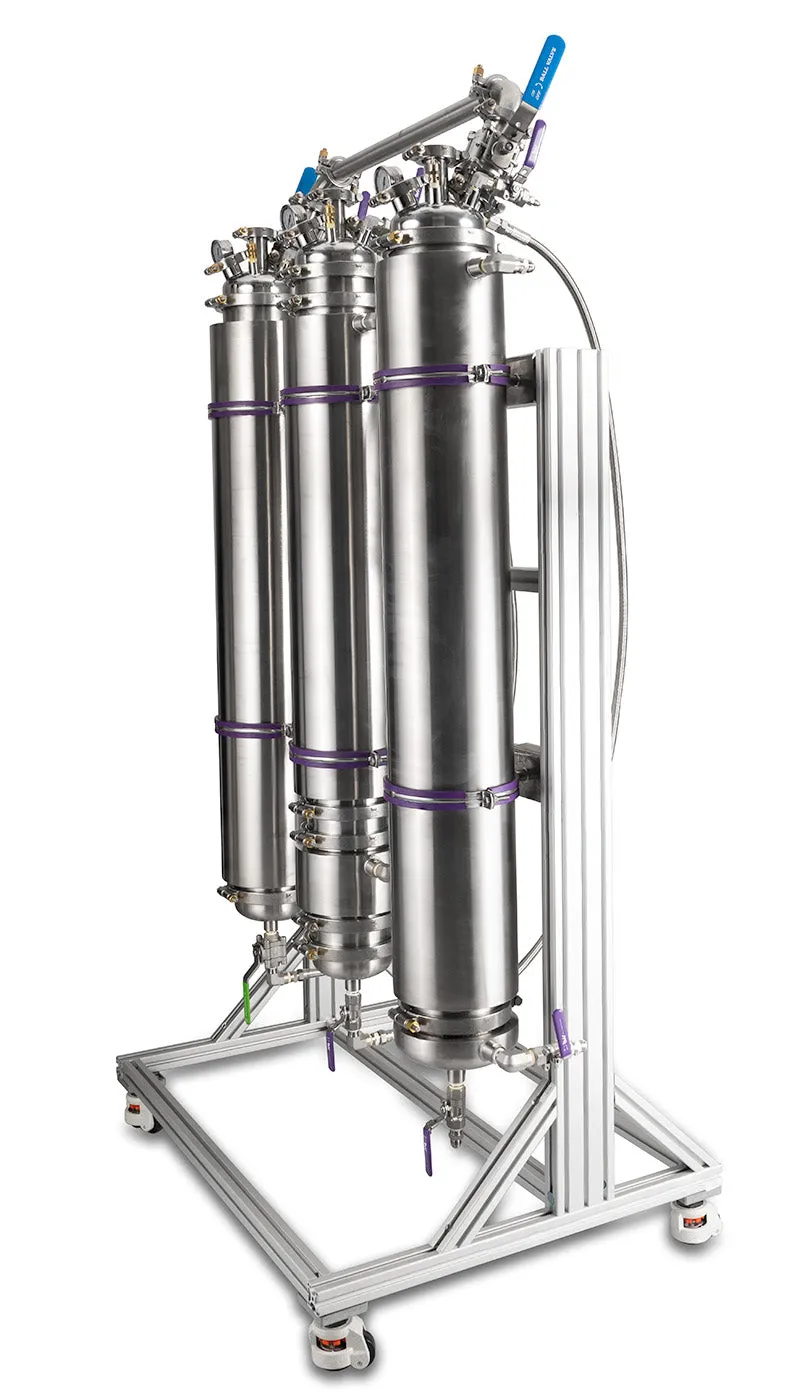

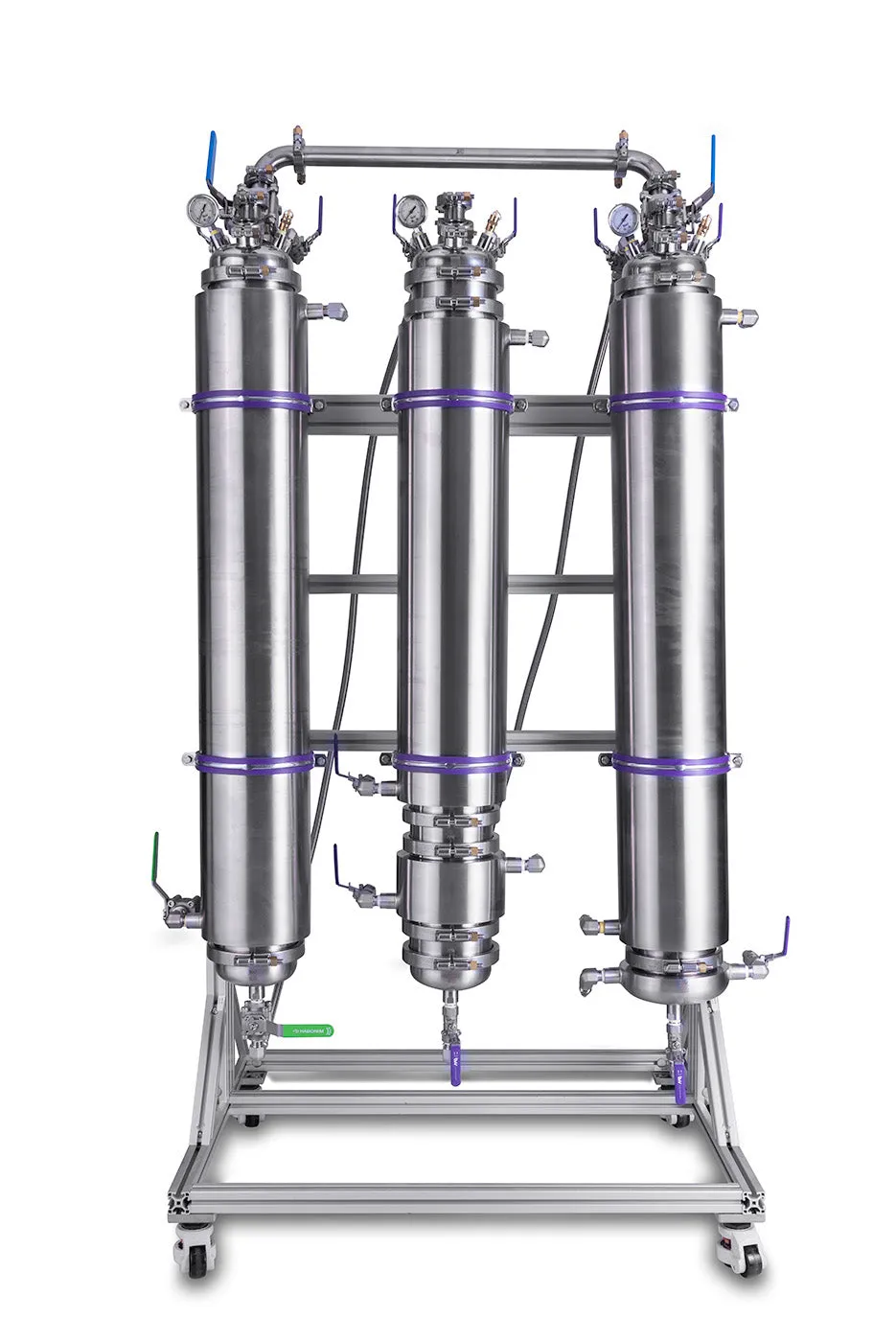

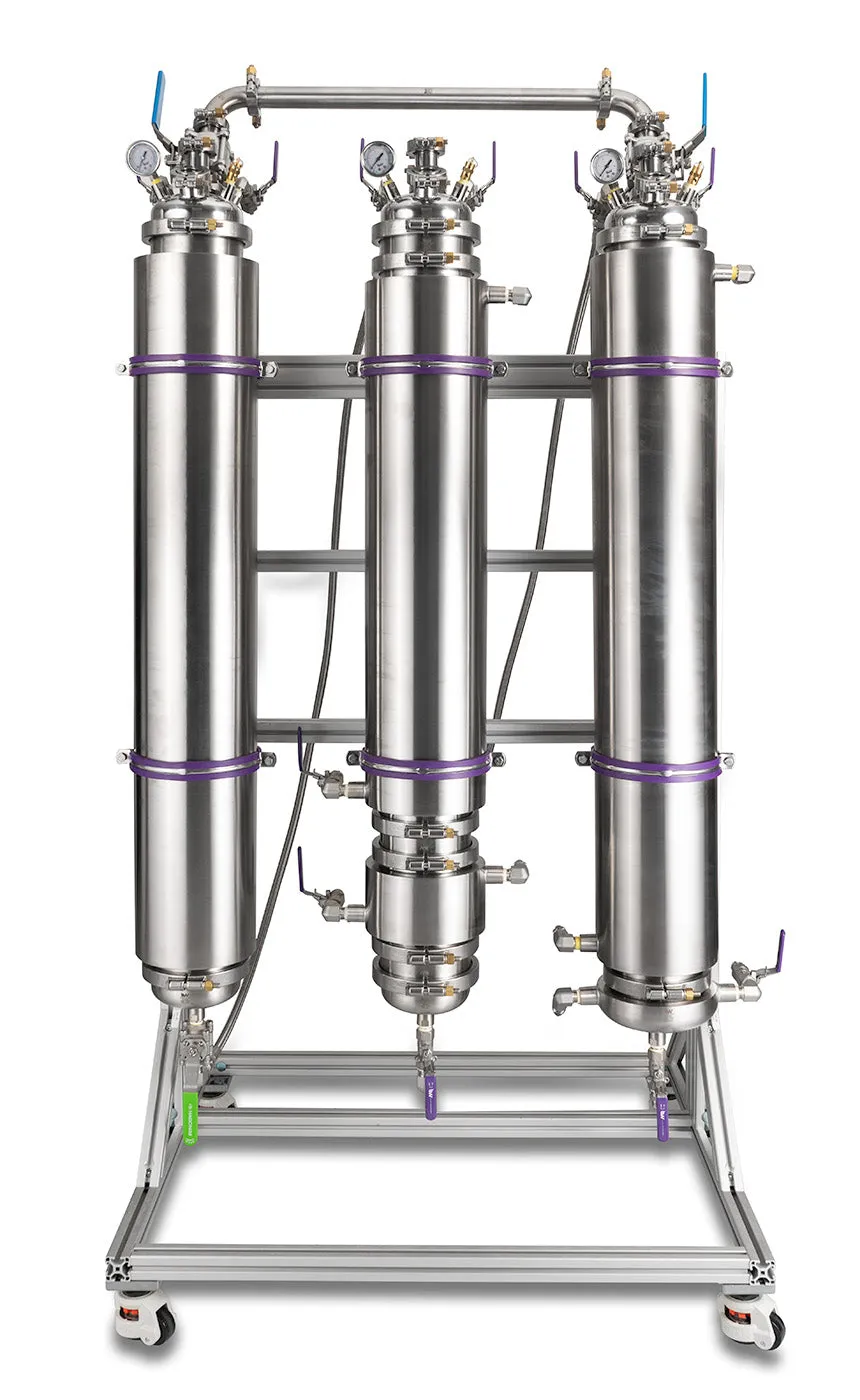

5LB Evo Certified Closed Loop Extractor

Equipped with the latest in modern extraction technology the 5lb EVO produces extracts of the highest purity in the shortest time possible through its inline solvent chilling and adsorbent filtration capabilities using its unrestricted passive recovery speeds when paired with our . Peer reviewed and 3P certified the 5lb EVO meets or exceeds Class 1 Division 1, NFPA 58, and ASME standards. With the ability to process 40 pounds of biomass material every 8 hours the 5lb Evo provides precision performance without the price.

Processing Power

• Capacity Per Batch: 5LB
• Cycle Time: 30-45 Minutes
• Capacity: Up to 40 lb, per 8-hour shift
• Extracts: isolate/sauce, distillate, vape pens, shatter, and wax/sugar

Specifications

• 6"x36" 5lb Material Column
• 6"x6" Adsorbent Filtration Column
• 1-5um Sintered disk filtration
• 1.5"x24" Inline molecular sieve column
• 7X 1.5" Certified Borosilicate Sight Glasses
• 3X 250 PSI ASME Safety Valves
• 3X -30hg-250PSI Compound Pressure Gauges
• 1.5" Full Bore Recovery Lines
• 1/2" JIC process Flow lines

• Footprint (DxWxH) 30"x40"x79"
• Weight: 400 lb
• Maximum Pressure Rating: 250PSI

Compliance

• Class 1, Division 1 Compliant
• Designed to ASME standrds
• NFPA 58 LPG compliant
• 3P Certifed 49 State compliant: AL, AR, AZ, CA, CO, CT, DE, DC, FL, GA, HI, IA, ID, IL, IN, KS, KY, LA, ME, MD, MA, MI, MN, MS, MO, MT, NE, NV, NH,NM, NY, NC, ND, OH, OK, OR, PA, RI, SC, SD, TN, TX, UT, VA, VT, WA, WV, WY, WI

Performance

• Jacketed or sleeved solvent column for prechilling of solvent & unbridled passive recovery
• Material Column solvent dispersal plate for complete biomass saturation
• 1500g Adsorbent filtration column complete with a 1-5um Sintered disk filter stack
• Independently Jacketed Material column, adsorbent filtration column, & collection column for complete process temperature control
• 1.5" full bore recovery lines for unrestricted solvent recovery
• Integrated -1.5"x24" Inline molecular sieve column for preserving solvent's effectiveness
• Easy to use extract pour spout for streamlined extract harvesting
